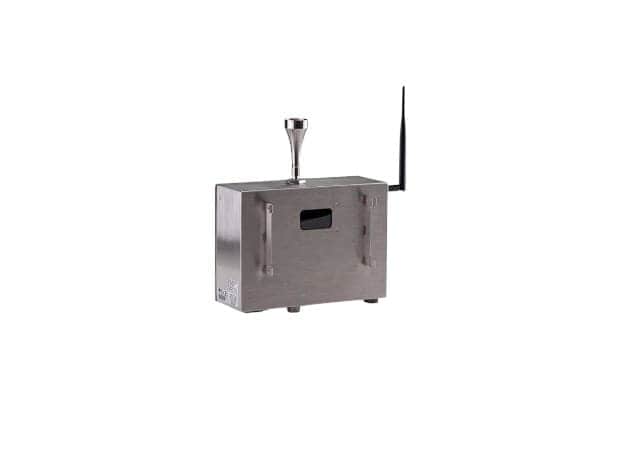

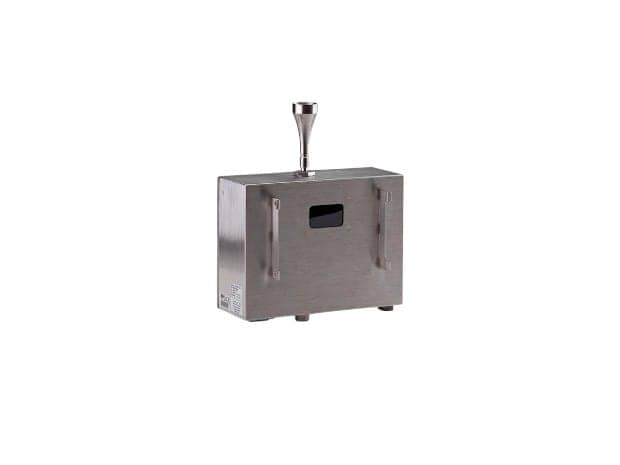

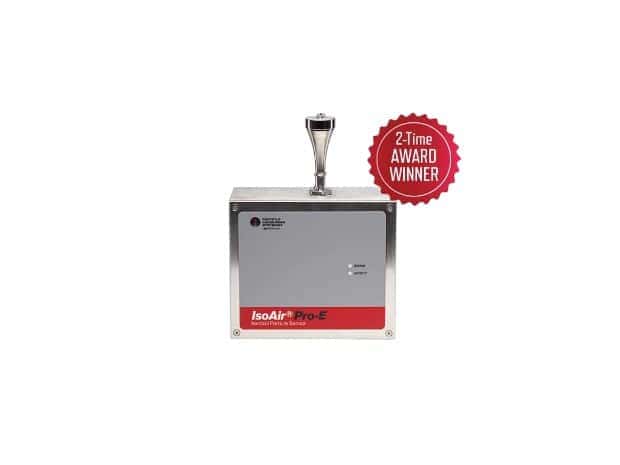

The 2-time award-winning IsoAir® Pro remote particle counter is the next-generation in Contamination Control Strategy It is a fixed environmental monitoring instrument that uses the latest technologies to simplify cleanroom monitoring into a compact, flexible, and powerful package that meets the needs of pharmaceutical and high-tech contamination control monitoring.

This remote particle counter enables you to monitor closer to critical control points than ever before. With the Power over Ethernet (PoE) and WiFi options, and a standard internal blower, it requires very few external connections and supporting equipment, or choose from a list of power and communication options to meet your specific needs. Additionally, the Isokinetic Sampling Probe (ISP) can be mounted directly to the inlet or extended from the particle sensor with flexible or rigid tubing in virtually any installation.

The robust 316L stainless steel enclosure is robust and liquid resistant with IP65 and NEMA 4X ratings. The quick-release mounting bracket stores essential sensor data such as the IP address at the point of measurement, reducing the time and complexity of unit installation after calibration or servicing via NFC communication. Data from the instrument can be securely and reliably incorporated into either a Particle Measuring Systems’ FacilityPro® Monitoring System or one of our facility monitoring software packages, with the option of third-party communications via Modbus TCP/IP or optional PMS TCP/IP protocols.

You choose the options your manufacturing requires:

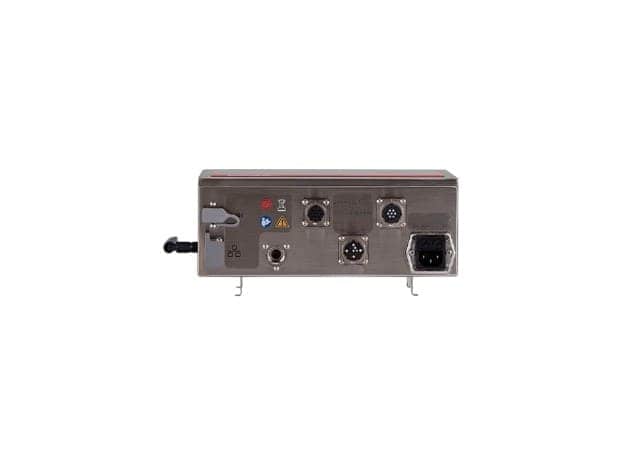

• Power supply (PoE, 100 – 240 VAC, or 24 VDC)
• Wireless communications
• Analog & Digital I/O

The following features come standard with the IsoAir Pro line of remote particle counters:

• 8 sample channels from 3 -25 µm (including 2-channel “Pharma Mode”)
• Integrated HEPA-filtered blower, eliminating the need for an external vacuum
• 316L stainless steel enclosure with IP65 & NEMA 4X ratings
• Resistant to Vaporized Hydrogen Peroxide (VHP)

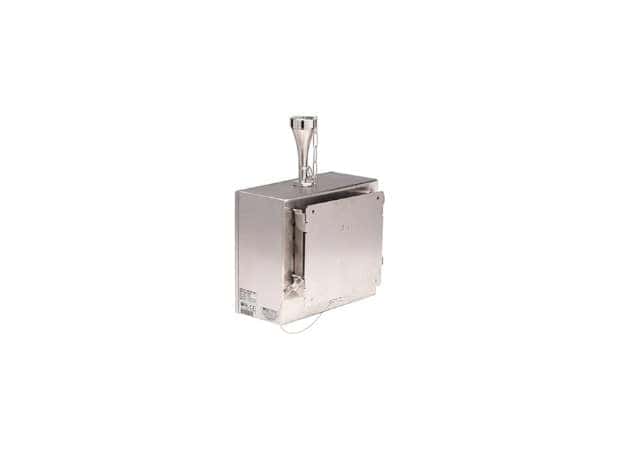

• Quick-release mounting bracket stores sensor ID data for easy connection
• Easily connect to PMS or third-party facility monitoring and compliant data management software systems
• Global regulatory and ISO standard compliance
• Highly regarded world-class PMS instrument service and support

The IsoAir Pro remote particle counter is currently available in 2 models:

IsoAir Pro-E:  0.3 – 25.0 µm; 1.0 CFM (28.3 LPM) – Built-in pump, choose wireless, analog & digital I/O

IsoAir Pro-Plus: 0.3 – 25.0 µm; 1.0 CFM (28.3 LPM) – Built-in vacuum, VHP Resistant, Power over Ethernet (POE)

Learn more about each instrument by clicking the buttons below or contact us about your specific needs.

The IsoAir Pro remote particle counter is part of the PRO Series from PMS, a complete collection of contamination monitoring tools developed from a decades-long commitment to supporting pharmaceutical manufacturers. Use the IsoAir Pro remote particle counter together with other products in the PRO Series for a total contamination control solution and the assurance of up-to-date compliance. The PRO Series helps you provide lifesaving and life-changing solutions for your customers by supporting clean manufacturing.

Particle Measuring Systems engineers, manufactures, installs, calibrates, repairs, and maintains the IsoAir® Pro remote particle counter.
